Industrial Fiberglass Tape
Fiberglass-backed adhesive tapes for high-temperature sealing, HVAC, thermal insulation, and electrical applications. Available with acrylic, silicone, and rubber adhesives.
High-Temperature Sealing & Insulation
Fiberglass-backed adhesive tapes with acrylic, silicone, or rubber adhesive systems. From HVAC duct sealing to transformer coil wrapping — we match the adhesive to your application.
Up to 315C Continuous
Silicone adhesive rated for continuous high-temp operation.
Custom Widths & Adhesives
Width 10-200mm. Silicone, acrylic, or rubber adhesive options.
Dielectric E-Glass Base
Inherent electrical insulation for transformer and motor coil wrapping.
Export Packaging
Individual roll wrapping, labeled cartons, palletized for container.
Technical Specifications
| Parameter | Value |
|---|---|
| Backing Material | Aluminum foil, fiberglass cloth, or PET film |
| Adhesive Types | Acrylic, silicone, rubber (hot-melt or solvent-based) |
| Temperature Range | -40°C to +315°C (adhesive-dependent; see FAQ) |
| Width Range | 12mm – 1200mm |
| Length | 10m – 100m per roll |
| Thickness | 0.08mm – 0.3mm |
| Adhesion Strength | ≥ 12 N/25mm |
| Certifications | ISO 9001, SGS, UL (on request) |
| MOQ | 1,000 rolls |
| Colors | Silver, white, black, custom |
Request a Quote
Fill in your details and we'll respond within 24 hours.
Proven Standard Configurations
Four self-adhesive aluminum foil tape models, all customizable in width and slitting. Solvent (Y) for highest bond, water-based (S) for low VOC, FR for fire-rated applications.
ZA6130Y
Fire-Retardant · Solvent Acrylic7μm aluminum foil + 110g fiberglass cloth + 45g FR solvent acrylic adhesive
Fire-rated aluminum foil tape for sealing, insulation and high-temperature wrapping. Solvent acrylic adhesive gives the strongest bond of the ZA series.
- Weight
- 285 g/m²
- Thickness
- 0.28 mm
- Width
- 4.8 cm – 1.2 m
- Temperature
- -40°C to +260°C
- Fire Rating
- FR certified
- MOQ / Lead
- 1,000 / 3–15 days
ZA Series · Aluminum Foil Tapes
ZA6110Y
- Structure
- 7μm foil + 90g cloth + 45g
- Adhesive
- Solvent acrylic
- Weight
- 240 g/m²
- Thickness
- 0.23 mm
- Width
- 4.8cm–1.2m
- FR
- —
ZA6110S
- Structure
- 7μm foil + 90g cloth + 45g
- Adhesive
- Water-based acrylic
- Weight
- 240 g/m²
- Thickness
- 0.23 mm
- Width
- 4.8cm–1.2m
- FR
- —
ZA6130Y
- Structure
- 7μm foil + 110g cloth + 45g
- Adhesive
- FR solvent acrylic
- Weight
- 285 g/m²
- Thickness
- 0.28 mm
- Width
- 4.8cm–1.2m
- FR
- ✓
ZA6140Y
- Structure
- 7μm foil + 115g cloth + 45g
- Adhesive
- FR solvent acrylic
- Weight
- 240 g/m²
- Thickness
- 0.26 mm
- Width
- 4.8cm–1.2m
- FR
- ✓
| Model | Structure | Adhesive | Weight | Thickness | Width | FR |
|---|---|---|---|---|---|---|
| ZA6110Y | 7μm foil + 90g cloth + 45g | Solvent acrylic | 240 g/m² | 0.23 mm | 4.8cm–1.2m | — |
| ZA6110S | 7μm foil + 90g cloth + 45g | Water-based acrylic | 240 g/m² | 0.23 mm | 4.8cm–1.2m | — |
| ZA6130Y | 7μm foil + 110g cloth + 45g | FR solvent acrylic | 285 g/m² | 0.28 mm | 4.8cm–1.2m | ✓ |
| ZA6140Y | 7μm foil + 115g cloth + 45g | FR solvent acrylic | 240 g/m² | 0.26 mm | 4.8cm–1.2m | ✓ |
All models: -40°C to +260°C (no delamination), release liner, MOQ 1,000, lead 3–15 days. Custom slitting from 6 mm.
Adhesive Guide
- ZA6130YFire-rated with solvent acrylic, strongest bond. For safety-critical sealing.
- ZA6140YFire-rated, lighter weight option for the same safety requirement.
- ZA6110YSolvent acrylic, highest general bond strength.
- ZA6110SWater-based acrylic, low VOC for sensitive environments.
Not sure which model fits your application? Tell us your operating conditions and we will recommend the right grade.
Where It's Used
Applied daily in HVAC systems, electrical equipment, automotive wire harnessing, and industrial pipe insulation.

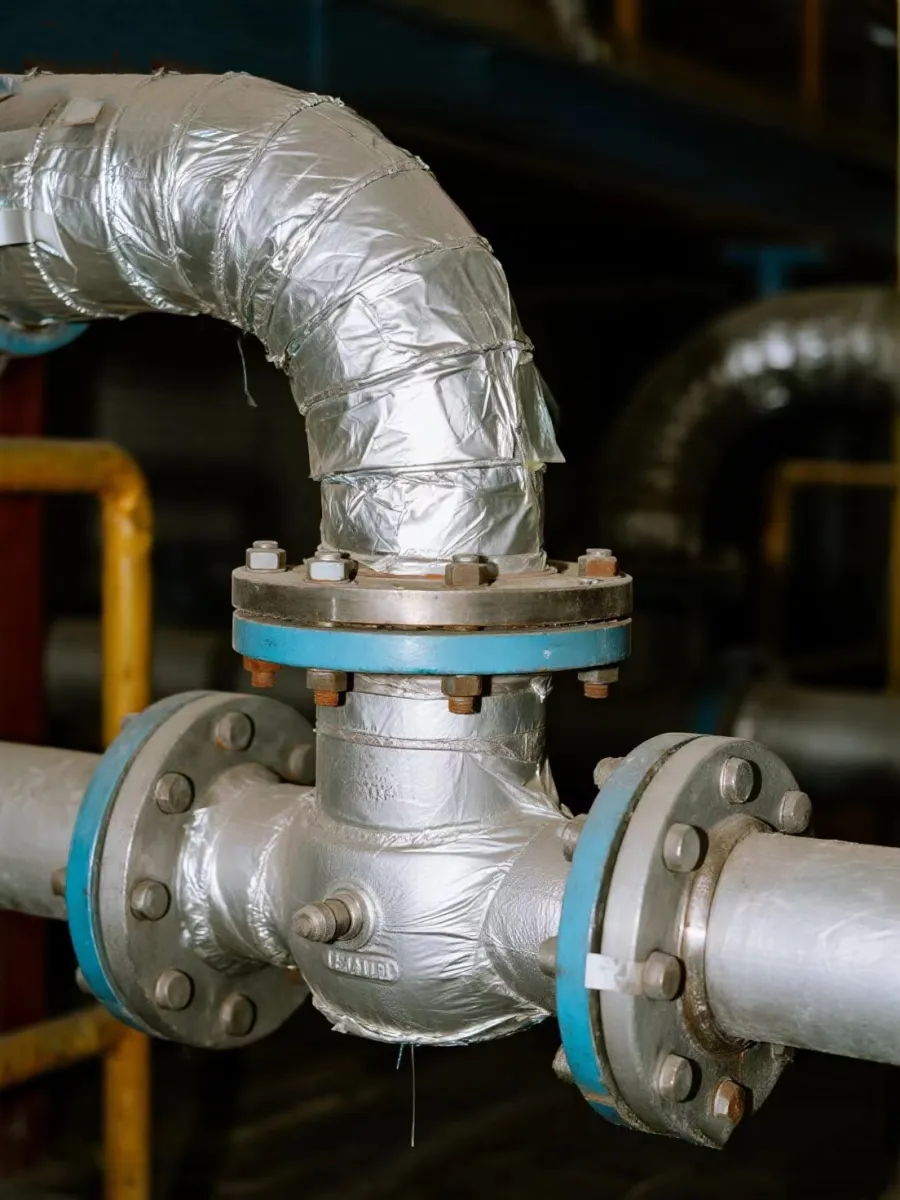

Duct sealing with foil tape

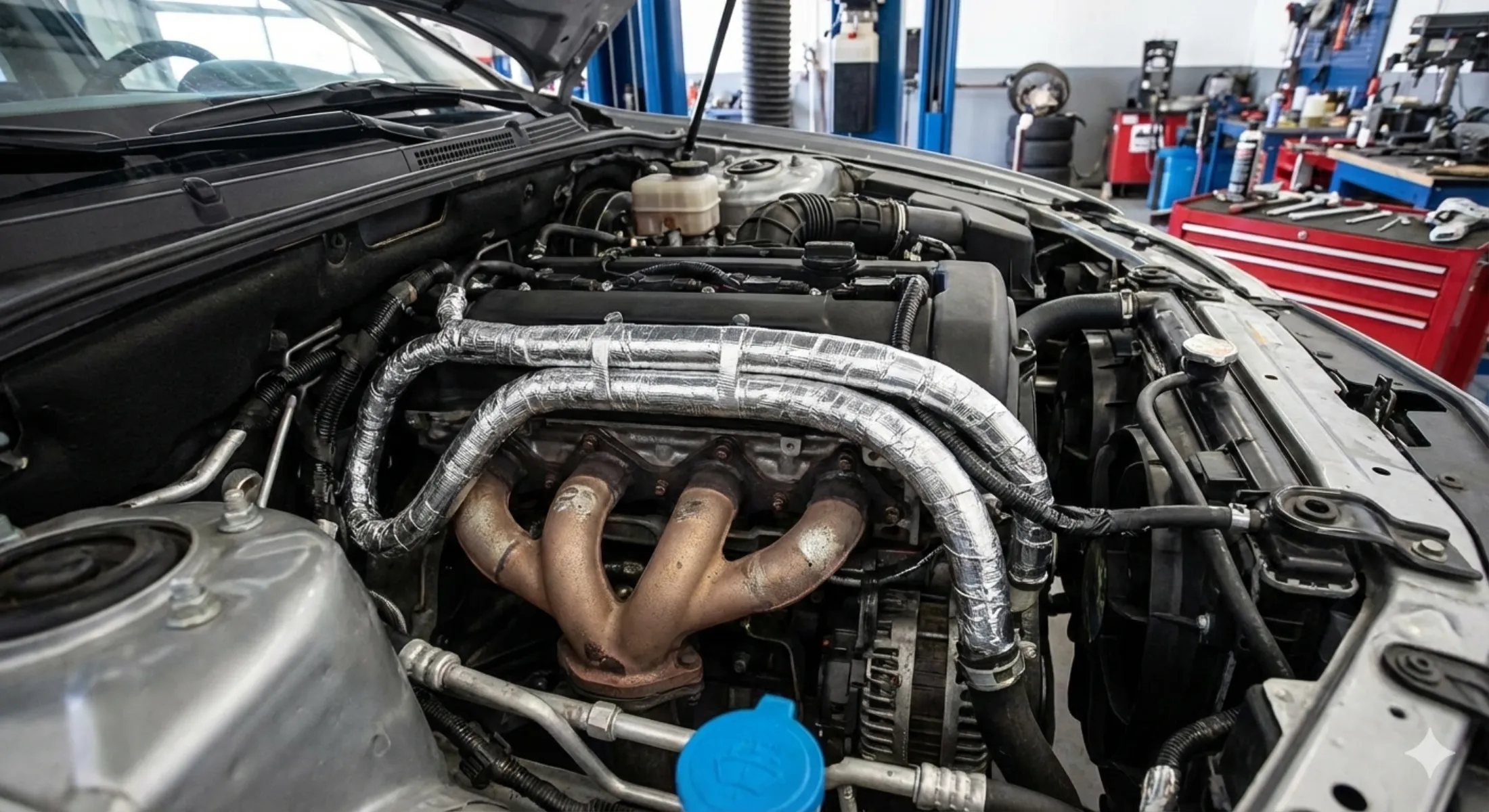

Automotive tape application

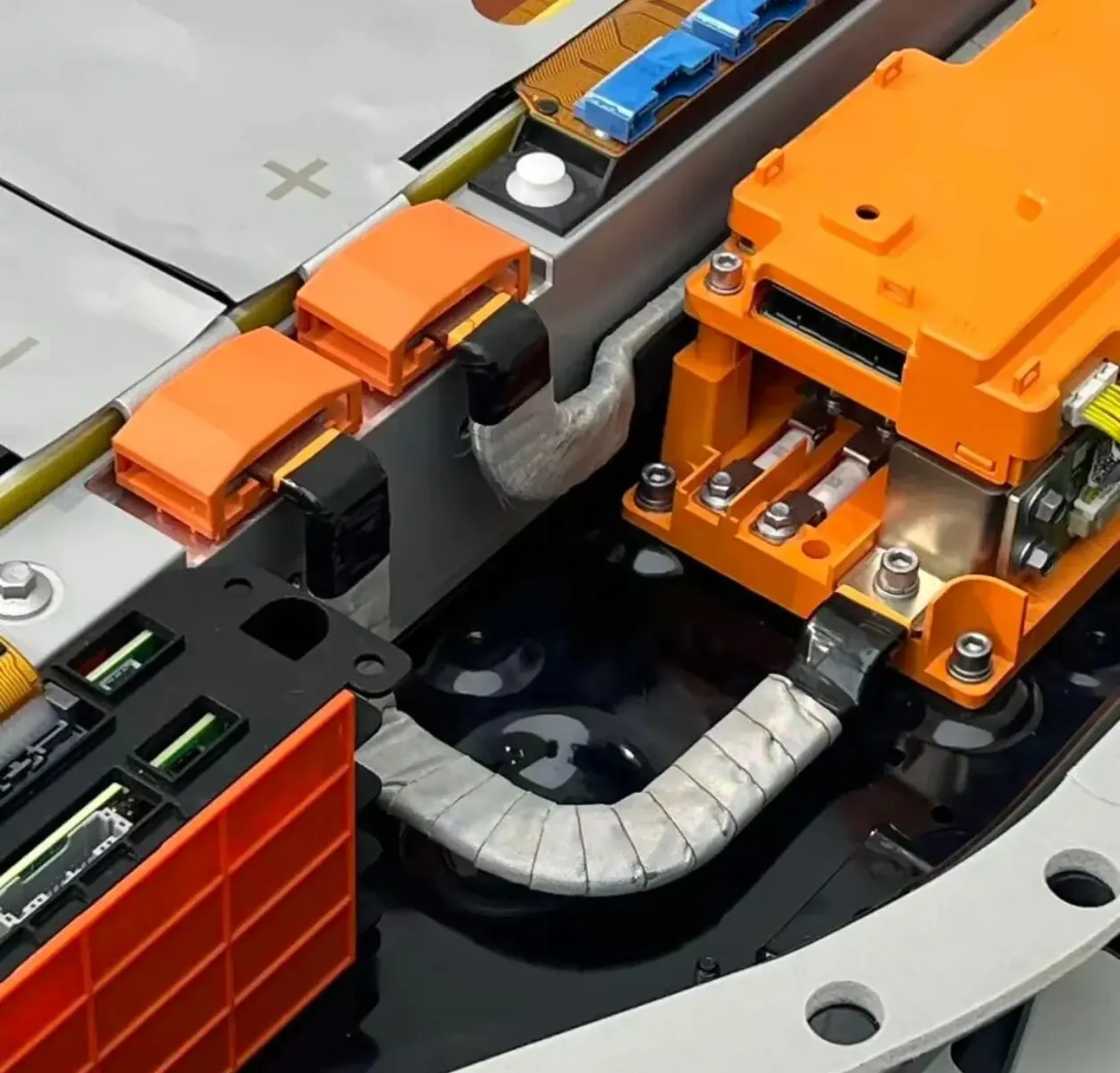

Battery insulation tape
Why Global Buyers Choose Our Factory
In-House Manufacturing
Weaving, coating, and slitting in our own factories. Every production stage under one quality system — consistent standards, no outsourcing.
Internationally Certified
ISO 9001:2015 quality management, SGS-audited factory, TUV Rheinland product safety compliance. Every batch traceable.
Engineer-to-Engineer Support
Talk to engineers who understand materials — not sales scripts. We recommend the right fiberglass solution for your specific application.
Global Export & Custom
Exporting to 50+ countries with full OEM/ODM capabilities. Custom dimensions, coatings, adhesives — your spec, our production.
Ming Yang Glass Fiber Co., Ltd.
Founded 2001. A specialized fiberglass manufacturer with in-house weaving, coating, and slitting across multiple specialized factories. Rigorous quality systems, consistent production standards.
Internationally Certified
ISO 9001:2015
SGS Audited
TUV RheinlandTrusted by Industry Leaders
Raw Material Partners
Frequently Asked Questions
Quick answers about our industrial fiberglass tapes — adhesive selection, UL certification, outdoor use, and ordering.
