Fiberglass Fabric
Plain woven E-glass fiber fabric for composite reinforcement, thermal insulation, and industrial applications. Available in various weights and weave patterns. ISO & SGS certified.
The Foundation of Our Product Ecosystem
E-glass woven fabric is the base substrate for all our coated and laminated products. Available in multiple weave patterns and weights — it’s where every Ming Yang product begins.
Multiple Weave Patterns
Plain, twill, and satin weaves. Weight 100-1500 g/m2.
Wide Dimensional Range
Width 100-2000mm. Precision-slit edges. Consistent tolerance.
ISO & SGS Certified
Every batch tested. Full traceability and material certificates.
24/7 Production Capacity
5,000t annual capacity ensures reliable supply for volume orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | E-glass fiber (alkali-free) |
| Models | 2116 (105g, 0.10mm, plain) / 3732 (430g, 0.43mm, twill) / 7628 (200g, 0.18mm, plain) |
| Weight | 105 ± 3 g/m² (2116) / 430 g/m² (3732) / 200 ± 10 g/m² (7628) |
| Thickness | 0.10 ± 0.012 mm (2116) / 0.43 mm (3732) / 0.18 ± 0.01 mm (7628) |
| Width | 1,050–1,270 mm (2116, 7628) / 1.0–2.0 m (3732) |
| Continuous Temp | 550°C |
| Package | Plastic bag + carton + pallet |
Request a Quote
Fill in your details and we'll respond within 24 hours.
Proven Standard Configurations
Commonly used E-glass base fabric grades. Standalone rolls, or the substrate for your own laminating and coating. Custom weave available.

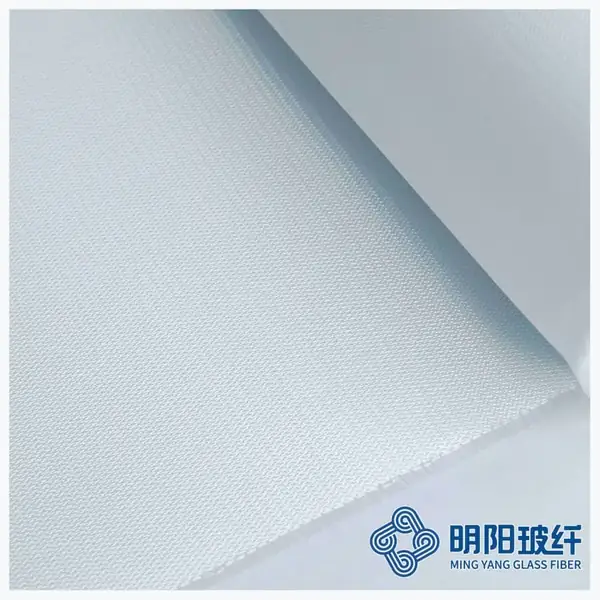

3732
Twill Weave · Heat-TreatedE-glass twill-weave fabric, heat-treated
Our most-used base fabric grade, and the substrate behind our flagship foil and silicone products. Heat-treated for dimensional stability.
- Weight
- 430 g/m²
- Thickness
- 0.43 mm
- Weave
- Twill, heat-treated
- Width
- 1.0–2.0 m
- Temperature
- 550°C
- MOQ
- 1,000 m²
E-Glass Base Fabric Grades
2116
- Weight
- 105 ± 3 g/m²
- Thickness
- 0.10 ± 0.012 mm
- Weave
- Plain
- Width
- 1,050–1,270 mm
- Temp
- 550°C
3732
- Weight
- 430 g/m²
- Thickness
- 0.43 mm
- Weave
- Twill, heat-treated
- Width
- 1.0–2.0 m
- Temp
- 550°C
7628
- Weight
- 200 ± 10 g/m²
- Thickness
- 0.18 ± 0.01 mm
- Weave
- Plain
- Width
- 1,050–1,270 mm
- Temp
- 550°C
| Code | Weight | Thickness | Weave | Width | Temp |
|---|---|---|---|---|---|
| 2116 | 105 ± 3 g/m² | 0.10 ± 0.012 mm | Plain | 1,050–1,270 mm | 550°C |
| 3732 | 430 g/m² | 0.43 mm | Twill, heat-treated | 1.0–2.0 m | 550°C |
| 7628 | 200 ± 10 g/m² | 0.18 ± 0.01 mm | Plain | 1,050–1,270 mm | 550°C |
Yarn: 2116 = E225 × E225, 7628 = ECG75 1/0 (3732 custom). Density 24×23 /cm (2116), 17×13 /cm (7628). Commonly used grades; custom weave available on request.
Selection Guide
- 3732Heavy twill, the workhorse grade for coating and lamination.
- 7628Standard electronic-grade plain weave, 200 g/m².
- 2116Light plain weave for thinner composite builds.
Not sure which model fits your application? Tell us your operating conditions and we will recommend the right grade.
Where It's Used
Chosen by composite manufacturers and industrial users for marine hull reinforcement, thermal insulation wrapping, and as coating substrate.
Marine & Shipbuilding
Hull composite reinforcement
Fiberglass cloth industrial use
Why Global Buyers Choose Our Factory
In-House Manufacturing
Weaving, coating, and slitting in our own factories. Every production stage under one quality system — consistent standards, no outsourcing.
Internationally Certified
ISO 9001:2015 quality management, SGS-audited factory, TUV Rheinland product safety compliance. Every batch traceable.
Engineer-to-Engineer Support
Talk to engineers who understand materials — not sales scripts. We recommend the right fiberglass solution for your specific application.
Global Export & Custom
Exporting to 50+ countries with full OEM/ODM capabilities. Custom dimensions, coatings, adhesives — your spec, our production.
Ming Yang Glass Fiber Co., Ltd.
Founded 2001. A specialized fiberglass manufacturer with in-house weaving, coating, and slitting across multiple specialized factories. Rigorous quality systems, consistent production standards.
