Double-Sided Foil Fabric

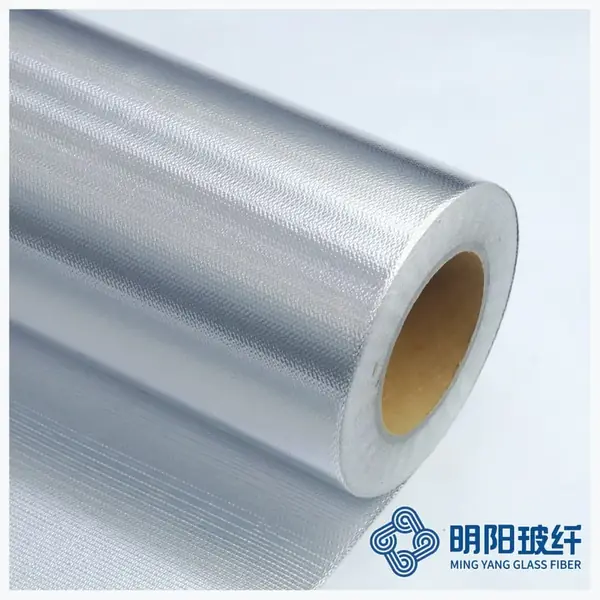

Dual-sided aluminum foil laminated E-glass fabric (Model B6460). 6μm foil on both sides of 420g glass cloth for maximum radiant heat reflectivity — up to 97%. -40°C to +260°C. ISO & SGS certified.
Maximum Dual-Direction Reflectivity
6μm aluminum foil laminated to both sides of 420g E-glass fabric — reflects up to 97% of radiant heat from both directions. The material of choice for suspended thermal barriers and cavity insulation.
Up to 97% Reflectivity
6μm aluminum foil on both sides. Superior to standard single-sided foil fabric.
Durable & Tear-Resistant
420g E-glass core with 43×30 yarn/cm density. Reinforced for strength and longevity.
Moisture & Corrosion Resistant
Impermeable to water vapor. Resistant to chemical degradation in harsh environments.
In-House Dual Lamination
Both foil layers laminated in one continuous process for consistent bonding quality.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | B6460 |
| Structure | 6μm aluminum foil + lamination glue + 420g E-glass cloth + 6μm aluminum foil |
| Weight | 460 g/m² |
| Thickness | 0.45mm |
| Density | 43×30 fiberglass yarn/cm |
| Width | 1m / 1.2m / 1.3m / 1.5m (custom available) |
| Length | 50m / 100m / 500m / 1000m / 2000m |
| Temperature Range | -40°C to +260°C (no de-lamination) |
| Heat Reflectivity | Up to 97% (both sides) |
| Packaging | Kraft paper, PE bag, hidden film with pallets or cartons |
| MOQ | ≥ 1,000 sqm |
| Lead Time | 3–15 days |
| Certifications | ISO 9001, SGS |
Request a Quote
Fill in your details and we'll respond within 24 hours.
Proven Standard Configurations
Our proven double-sided foil configuration, produced regularly. Customizable: weight, width and foil grade.
B6460
Double-Sided · 97% Reflection6μm aluminum foil + adhesive + 420g glass cloth + 6μm aluminum foil
Identical 6μm foil on both faces reflects radiant heat from both directions. For suspended thermal curtains, cavity insulation and dual-direction equipment shielding.
- Weight
- 460 g/m²
- Thickness
- 0.45 mm
- Reflectivity
- 97% both sides
- Temperature
- -40°C to +260°C
- Width / Length
- 1.0–1.5 m / 50–2,000 m
- MOQ / Lead
- 1,000 m² / 3–15 days
Not sure which model fits your application? Tell us your operating conditions and we will recommend the right grade.
Where It's Used
Engineered for suspended thermal curtains, dual-reflective radiant barriers, and equipment shielding where heat comes from both sides.
Why Global Buyers Choose Our Factory
In-House Manufacturing
Weaving, coating, and slitting in our own factories. Every production stage under one quality system — consistent standards, no outsourcing.
Internationally Certified
ISO 9001:2015 quality management, SGS-audited factory, TUV Rheinland product safety compliance. Every batch traceable.
Engineer-to-Engineer Support
Talk to engineers who understand materials — not sales scripts. We recommend the right fiberglass solution for your specific application.
Global Export & Custom
Exporting to 50+ countries with full OEM/ODM capabilities. Custom dimensions, coatings, adhesives — your spec, our production.
Ming Yang Glass Fiber Co., Ltd.
Founded 2001. A specialized fiberglass manufacturer with in-house weaving, coating, and slitting across multiple specialized factories. Rigorous quality systems, consistent production standards.
Internationally Certified
ISO 9001:2015
SGS Audited
TUV RheinlandTrusted by Industry Leaders
Raw Material Partners
