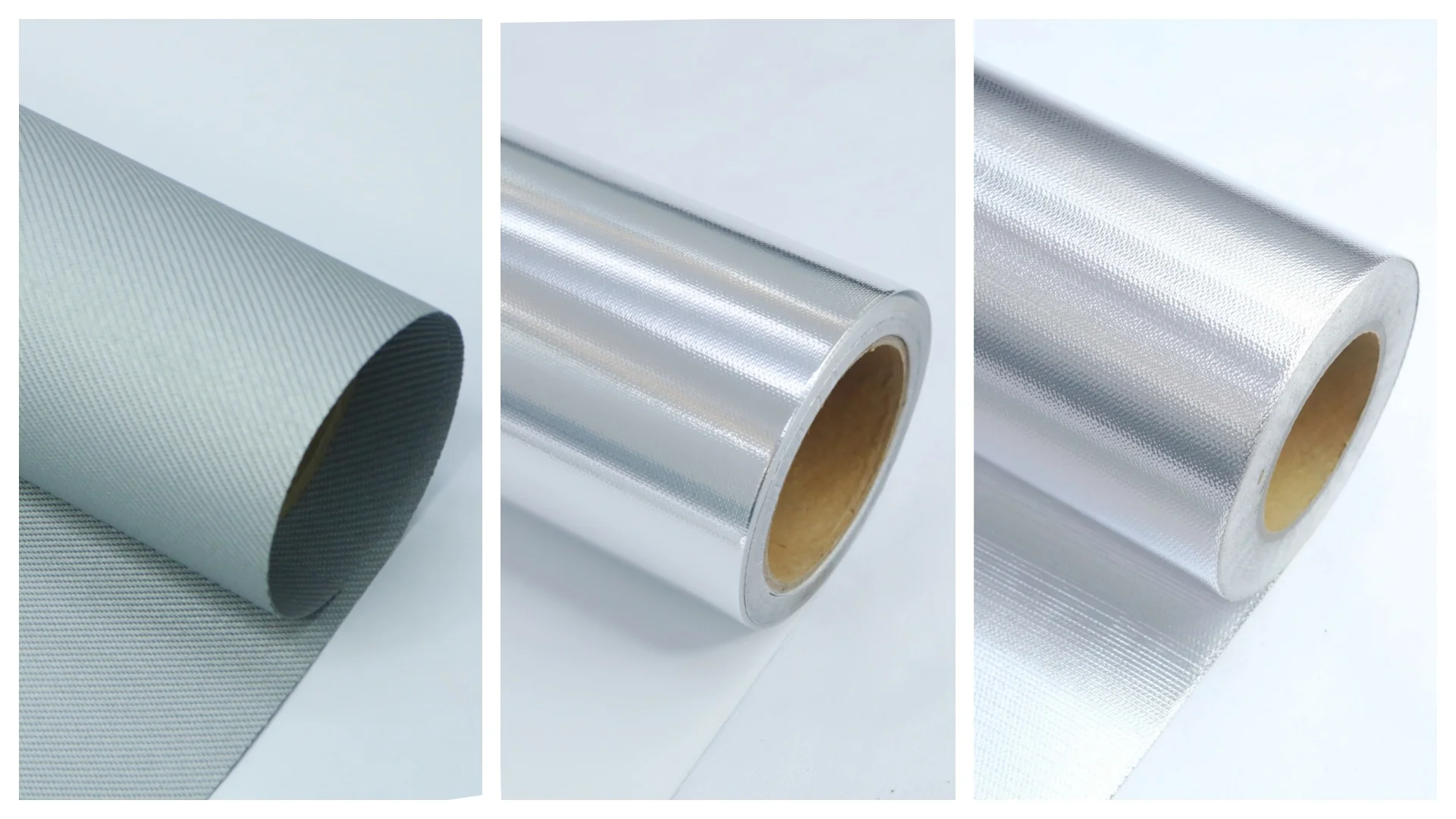

Laminated & Coated Fiberglass Fabrics
In-house lamination and coating on E-glass woven fabric since 2001. Engineered for fire protection, thermal insulation, and heat shielding — across construction, marine, automotive, and industrial applications. Three proven product platforms. If our standard products don't meet your requirements, we can produce to your specification.
MOQ 5,000 m² · Free Samples · Lead Time 15–25 Days · Engineer Response ≤24h
Proven Platforms, Built In-House
Two manufacturing processes — lamination and coating — running on our own production lines since 2001. These three products represent our core capability and ship to 50+ countries.
Aluminum Foil Fabric
Up to 300°C continuous
95% radiant heat reflection
Best for: Pipe & duct insulation, building radiant barriers, automotive heat shielding
20μm foil on E-glass
200–1200 g/m²
100–1500 mm width
ISO · SGS · TÜV · RoHS
Silicone Coated Fabric
-50°C to +260°C
A2 fire class · Waterproof
Best for: Expansion joints, removable insulation covers, welding blankets, marine
Single or double side
500–1160 g/m²
0.4–1mm thick
UL · RoHS · CE · ISO · SGS
Double-Sided Foil Fabric
-40°C to +260°C
97% reflection both sides
Best for: Suspended thermal curtains, cavity insulation, dual-direction heat shielding
6μm foil on both sides
460 g/m² · 0.45mm
Model B6460
ISO · SGS
Your Specification, Our Production Line
Because we own both the lamination and coating processes — not outsourced, not brokered — we adjust parameters to your requirements. These are the dimensions you control when you work directly with our factory.
Foil Lamination
7μm, 9μm, 18μm, 20μm aluminum foil (8011/1235 alloy). Single or double side. Up to 1500mm width.
Silicone Coating
Industrial-grade or flame-retardant silicone rubber. Single or double side. UL, RoHS, CE certified.
Fabric Base
100–1500 g/m² E-glass woven fabric. Plain, twill, or satin weave. Width 100–2000mm.
Color & Packaging
Silicone in red, gray, green, black, or custom colors. Kraft paper, PE bag, palletized export packaging.
Why Global Buyers Choose Our Factory
In-House Manufacturing
Weaving, coating, and slitting in our own factories. Every production stage under one quality system — consistent standards, no outsourcing.
Internationally Certified
ISO 9001:2015 quality management, SGS-audited factory, TUV Rheinland product safety compliance. Every batch traceable.
Engineer-to-Engineer Support
Talk to engineers who understand materials — not sales scripts. We recommend the right fiberglass solution for your specific application.
Global Export & Custom
Exporting to 50+ countries with full OEM/ODM capabilities. Custom dimensions, coatings, adhesives — your spec, our production.
Ming Yang Glass Fiber Co., Ltd.
Founded 2001. A specialized fiberglass manufacturer with in-house weaving, coating, and slitting across multiple specialized factories. Rigorous quality systems, consistent production standards.
Internationally Certified
ISO 9001:2015
SGS Audited
TUV RheinlandTrusted by Industry Leaders
Raw Material Partners
Frequently Asked Questions
Quick answers about our laminated and coated fiberglass fabrics — lamination vs coating, choosing the right product, customization, certifications, and in-house manufacturing.
Contact Product Expert
Tell us your application, operating temperature, environment, dimensions, and any special requirements. Our engineers will respond with a specific recommendation — from our standard platforms or a custom configuration.
