Aluminum Foil Fabric
High-performance aluminum foil laminated E-glass fabric for thermal insulation, heat shielding, and fire protection. Also referred to as aluminium foil glass cloth, foil backed fiberglass insulation, reflective insulation fabric, or aluminum laminated fiberglass. Up to 300°C continuous. ISO & SGS certified.
The Flagship Thermal Reflective Material
From building roofs to industrial pipe cladding — aluminum foil fabric combines radiant heat reflection with mechanical tear resistance.
95% Radiant Heat Reflection
20μm aluminum foil reflects up to 95% of radiant heat.
Custom Dimensions
Width 100-1500mm, weight 200-1200 g/m2, foil 7-30μm.
Certified & Tested
ISO 9001, SGS audited, TUV Rheinland compliant. Batch traceable.
In-House Production
Weaving, laminating, and slitting all under one quality system.
Technical Specifications
| Parameter | Value |
|---|---|
| Base Fabric | E-glass fiber woven fabric (fabric model 3732/3784) |
| Foil Layer | 20μm aluminum foil (standard: 7μm, 9μm, 18μm) |
| Weight Range | 200–490 g/m² (custom up to 1,200 g/m²) |
| Width Range | 100–1500 mm |
| Continuous Temp | 300°C (no delamination for 4 hours) |
| Short-Term Peak | 300–350°C |
| Certifications | ISO 9001, SGS, TÜV Rheinland, RoHS |
| MOQ | 1,000 sqm (custom specs from 1,000 sqm) |
| Thickness Options | 0.1mm – 1.5mm |
| Foil Type | 8011 / 1235 aluminum alloy foil |
| Also referred to as | Aluminium foil glass cloth, foil backed fiberglass, reflective insulation fabric, aluminum laminated fiberglass |
Request a Quote
Fill in your details and we'll respond within 24 hours.
Proven Standard Configurations
Proven configurations we produce regularly, straight from the factory. Customize any parameter: foil thickness, base fabric, width, or length, on our own lamination line.

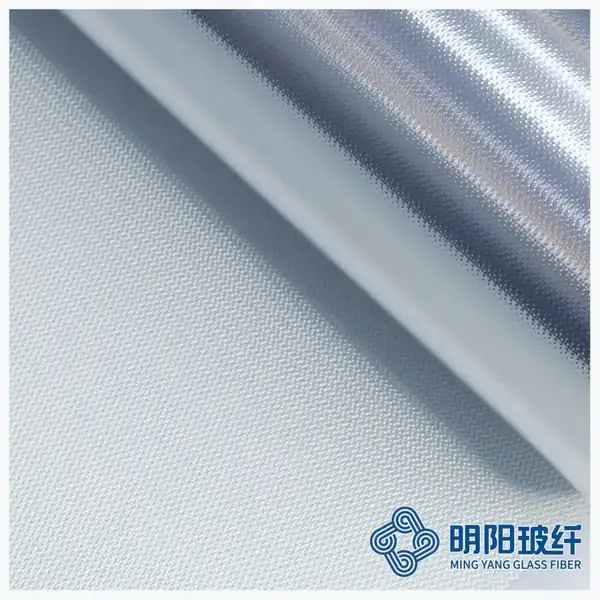

FA6480
Flagship · 300°C Rated6μm aluminum foil + 18μm PET + adhesive + 3732 twill-weave glass cloth
Our most durable aluminum foil fabric. The PET layer adds a vapor and mechanical barrier beyond standard foil fabrics; the 3732 twill-weave base gives superior tear resistance; the embossed foil surface improves flexibility around curved pipes and irregular shapes.
- Total Weight
- 490 g/m²
- Thickness
- 0.44 mm
- Width
- 1.0 / 1.2 m or custom
- Heat Reflectivity
- ≥ 95%
- Continuous Temp
- 300°C × 3h, no delamination
- Lead Time
- 3–7 days
A-Series · Standard Aluminum Foil Fabrics
A6200
- Foil
- 6μm
- Base Fabric
- 180 g/m²
- Weight
- 200 g/m²
- Thickness
- 0.20 mm
- Tensile
- ≥600 N/25mm
- Width
- 1.0–1.25 m
A6280
- Foil
- 6μm
- Base Fabric
- 256 g/m²
- Weight
- 280 g/m²
- Thickness
- 0.29 mm
- Tensile
- ≥800 N/25mm
- Width
- 1.0–1.25 m
A9240
- Foil
- 9μm
- Base Fabric
- 210 g/m²
- Weight
- 240 g/m²
- Thickness
- 0.20 mm
- Tensile
- ≥800 N/25mm
- Width
- 1.22 m
| Model | Foil | Base Fabric | Weight | Thickness | Tensile | Width |
|---|---|---|---|---|---|---|
| A6200 | 6μm | 180 g/m² | 200 g/m² | 0.20 mm | ≥600 N/25mm | 1.0–1.25 m |
| A6280 | 6μm | 256 g/m² | 280 g/m² | 0.29 mm | ≥800 N/25mm | 1.0–1.25 m |
| A9240 | 9μm | 210 g/m² | 240 g/m² | 0.20 mm | ≥800 N/25mm | 1.22 m |
Acrylic adhesive, room-temperature service, roll packaging. MOQ 1,000 m² per model. A9240 uses 9μm foil for higher reflectivity without excessive weight gain.
Selection Guide
- FA6480300°C rating and maximum durability. Choose when temperature and service life matter most.
- A9240Thicker 9μm foil for better reflection, lighter than FA6480.
- A6280Highest tensile strength of the A-series for demanding installations.
- A6200Lightest option for general reflective wrapping.
Not sure which model fits your application? Tell us your operating conditions and we will recommend the right grade.
Where It's Used

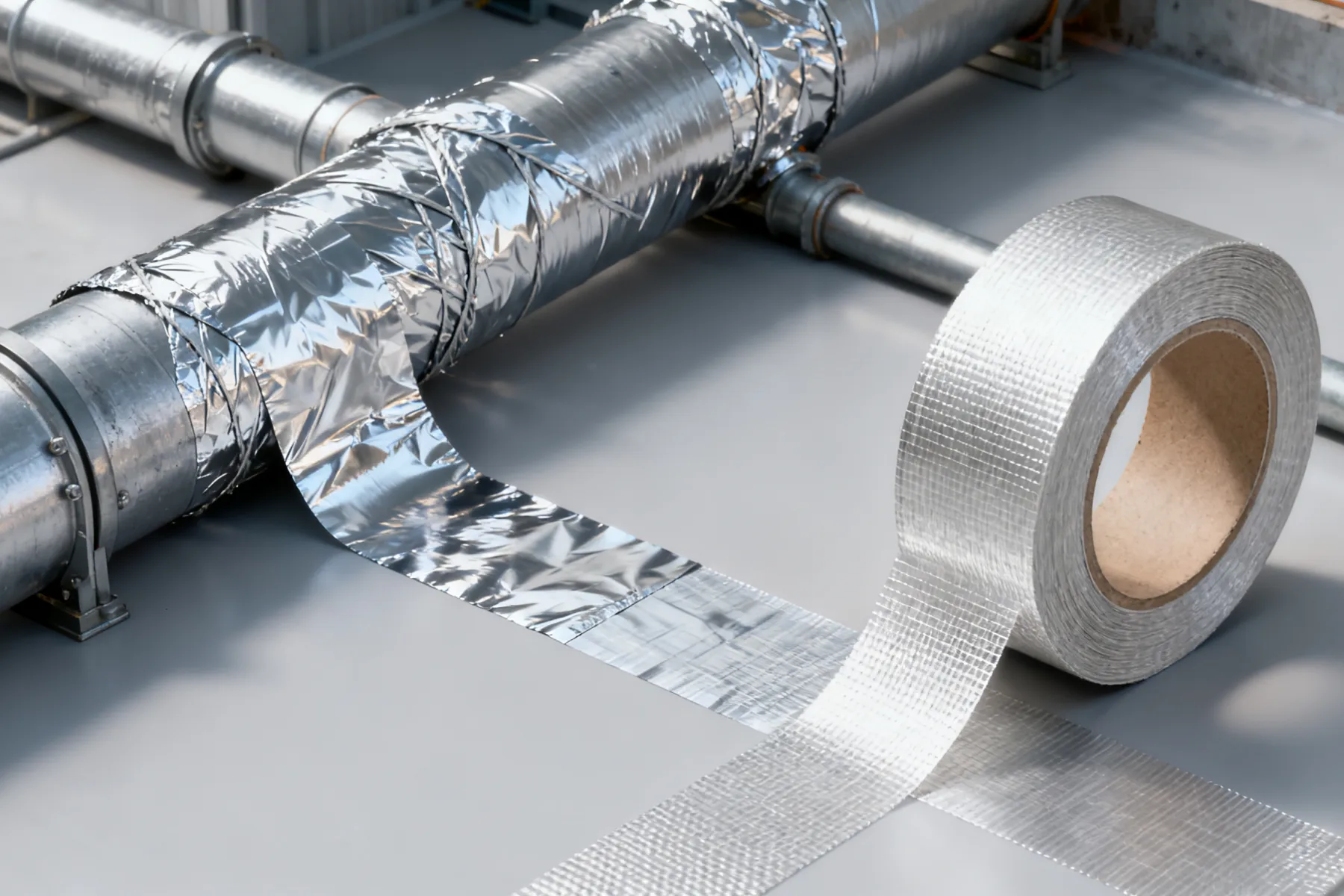

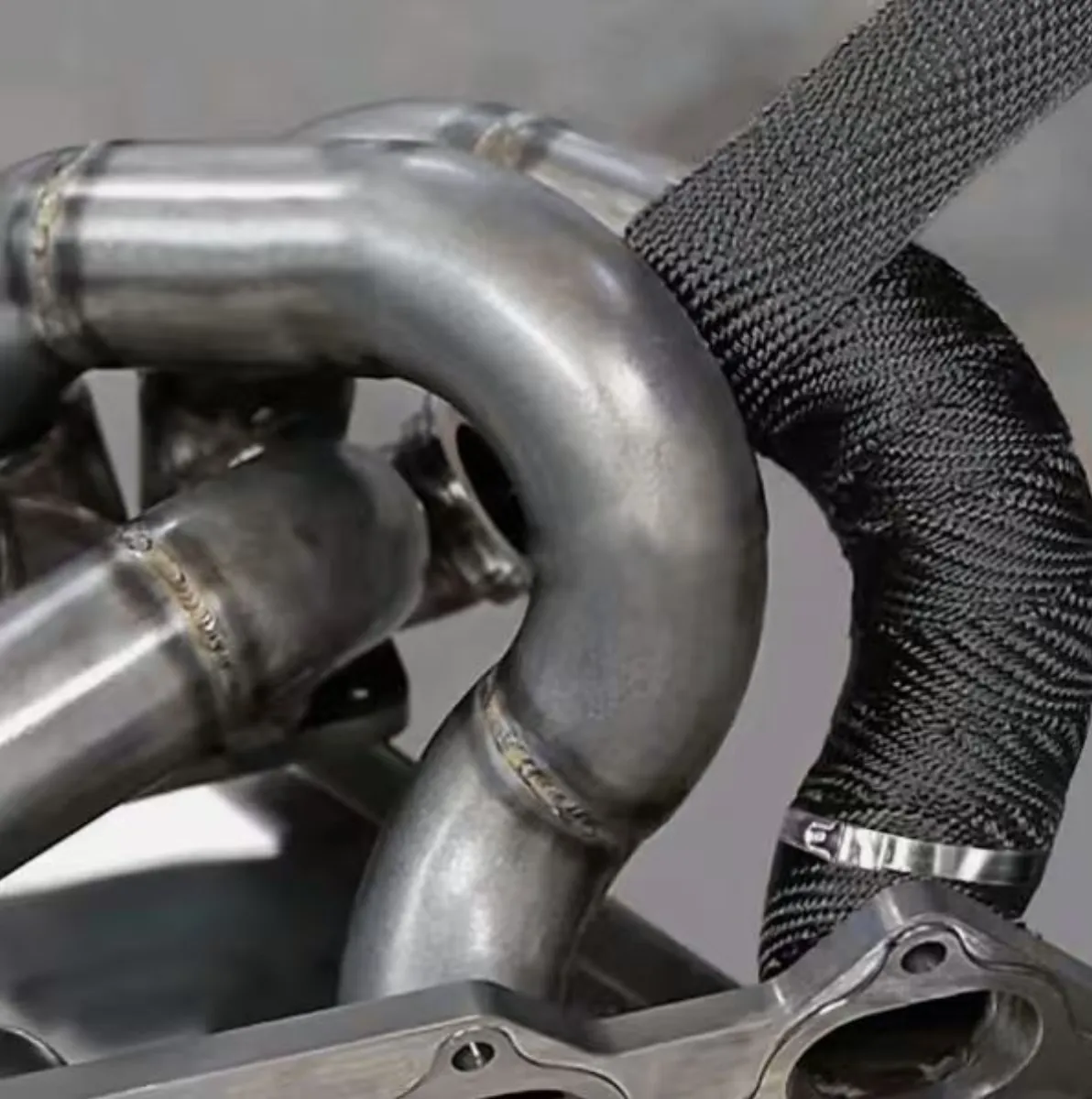

Trusted across industrial pipe insulation, automotive heat shielding, and building radiant barriers.
Why Global Buyers Choose Our Factory
In-House Manufacturing
Weaving, coating, and slitting in our own factories. Every production stage under one quality system — consistent standards, no outsourcing.
Internationally Certified
ISO 9001:2015 quality management, SGS-audited factory, TUV Rheinland product safety compliance. Every batch traceable.
Engineer-to-Engineer Support
Talk to engineers who understand materials — not sales scripts. We recommend the right fiberglass solution for your specific application.
Global Export & Custom
Exporting to 50+ countries with full OEM/ODM capabilities. Custom dimensions, coatings, adhesives — your spec, our production.
Ming Yang Glass Fiber Co., Ltd.
Founded 2001. A specialized fiberglass manufacturer with in-house weaving, coating, and slitting across multiple specialized factories. Rigorous quality systems, consistent production standards.
Internationally Certified
ISO 9001:2015
SGS Audited
TUV RheinlandTrusted by Industry Leaders
Raw Material Partners
Frequently Asked Questions
Quick answers about our aluminum foil fabric — dimensions, foil grades, ordering, and applications.
