Product Specifications

Every standard production model with its full technical data. Standard and special variants are clearly separated. Open a model card for the complete specification sheet and inquiry form.

Aluminum foil laminated fiberglass fabric

Aluminum Foil Fabric

Radiant heat reflection for pipe cladding, HVAC and automotive shielding.

FA6480 Aluminum Foil Fabric300°C · PET barrier
FA6480Flagship

6μm aluminum foil + 18μm PET + adhesive + 3732 twill-weave glass cloth

490 g/m²·300°C
A6200 Aluminum Foil FabricLightest · 6μm foil
A6200

Lightest option for general reflective wrapping.

200 g/m²·300°C
A6280 Aluminum Foil FabricHighest tensile
A6280

Highest tensile strength of the A-series for demanding installations.

280 g/m²·300°C
A9240 Aluminum Foil Fabric9μm foil · High reflection
A9240

Thicker 9μm foil for better reflection, lighter than FA6480.

240 g/m²·300°C

Special Variants

Modified structures engineered for specific requirements — different from the standard models above

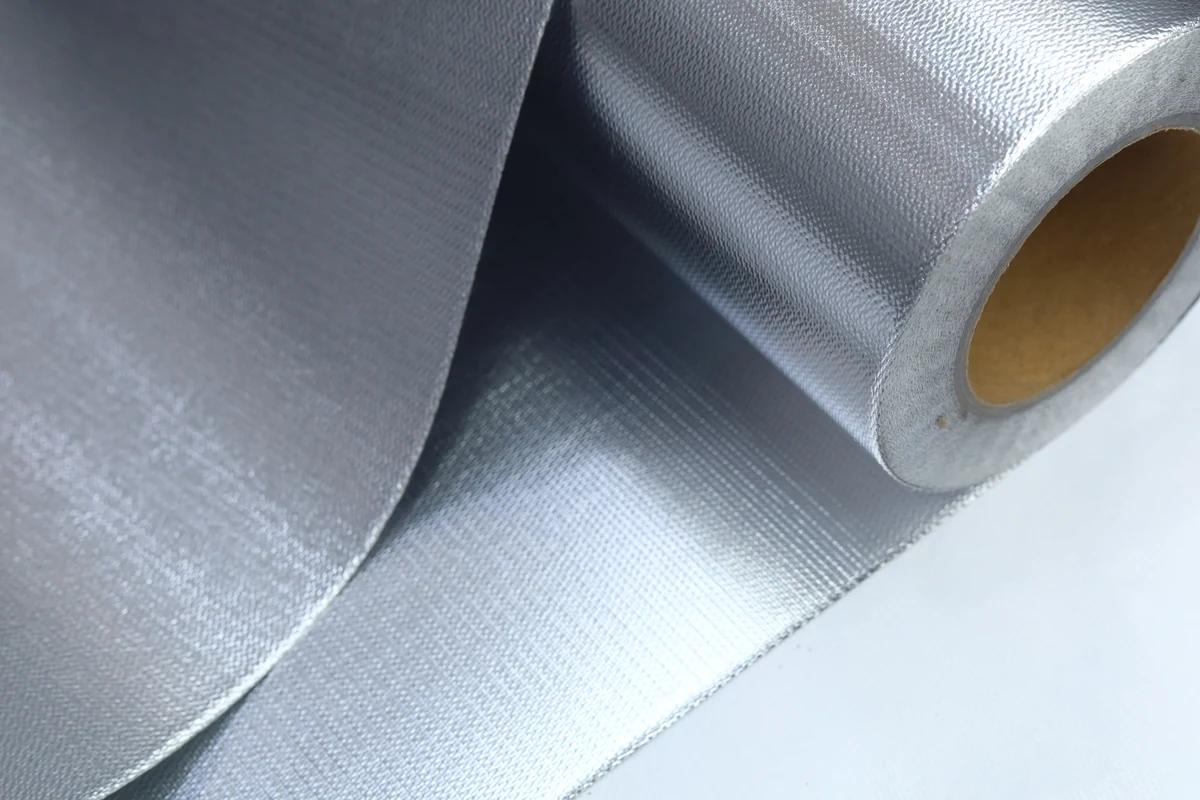

B6460 Aluminum Foil Fabric97% both faces
B6460FlagshipDouble-Sided Foil

6μm aluminum foil + adhesive + 420g glass cloth + 6μm aluminum foil

460 g/m²·260°C

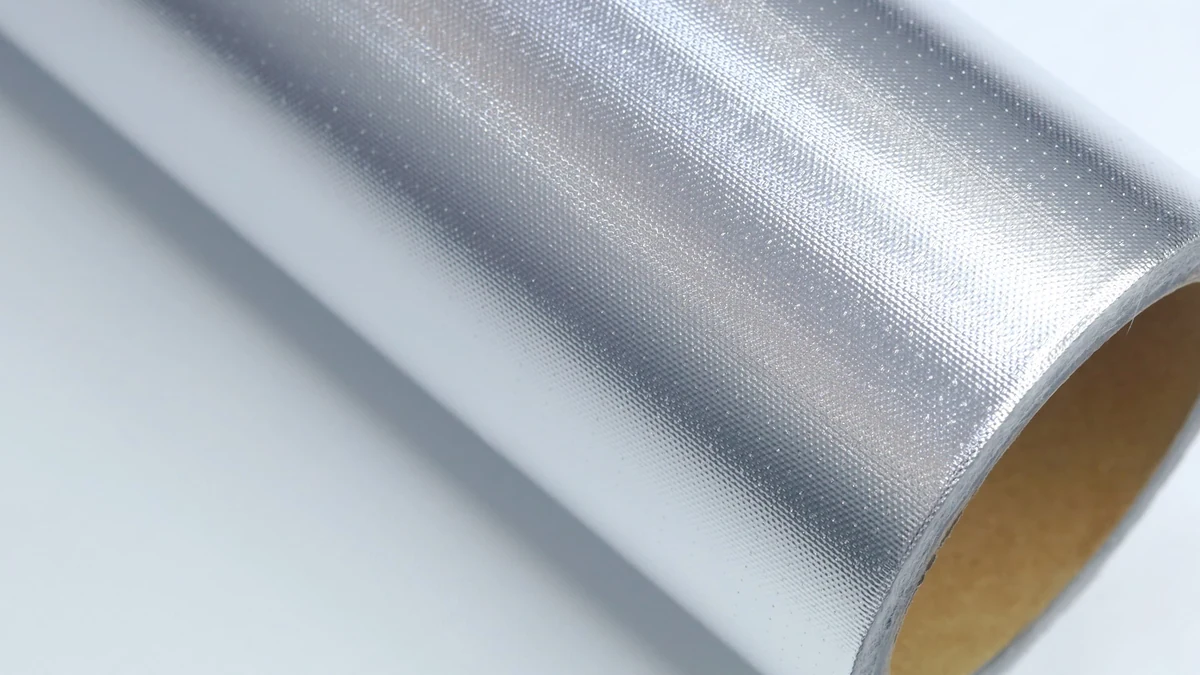

A6230 Aluminum Foil FabricBreathable · Anti-condensation
A6230FlagshipPerforated Foil

6μm aluminum foil + adhesive + 210g pre-punched glass cloth

230 g/m²·260°C
Silicone rubber coated fiberglass fabric

Silicone Coated Fabric

Flexible, waterproof, A2 fire-rated coating for insulation covers, welding blankets and expansion joints.

3732-500 Silicone Coated FabricSingle-sided · A2
3732-500Flagship

Single-side industrial-grade silicone rubber coating on 3732 E-glass woven fabric

507 g/m²·260°C
3732-580 Silicone Coated FabricDouble-sided · Waterproof
3732-580

Double-sided coating, stronger waterproofing for outdoor equipment covers.

594 g/m²·260°C
3784-1160 Silicone Coated FabricHeavy-duty · 840g base
3784-1160

Heaviest grade, 840 g/m² base. Large expansion joints and heavy-duty removable insulation covers.

1,170 g/m²·260°C
1550-530 Silicone Coated FabricHigh-silica · Higher temp
1550-530

High-silica base for higher temperature resistance beyond standard E-glass limits.

534 g/m²·260°C

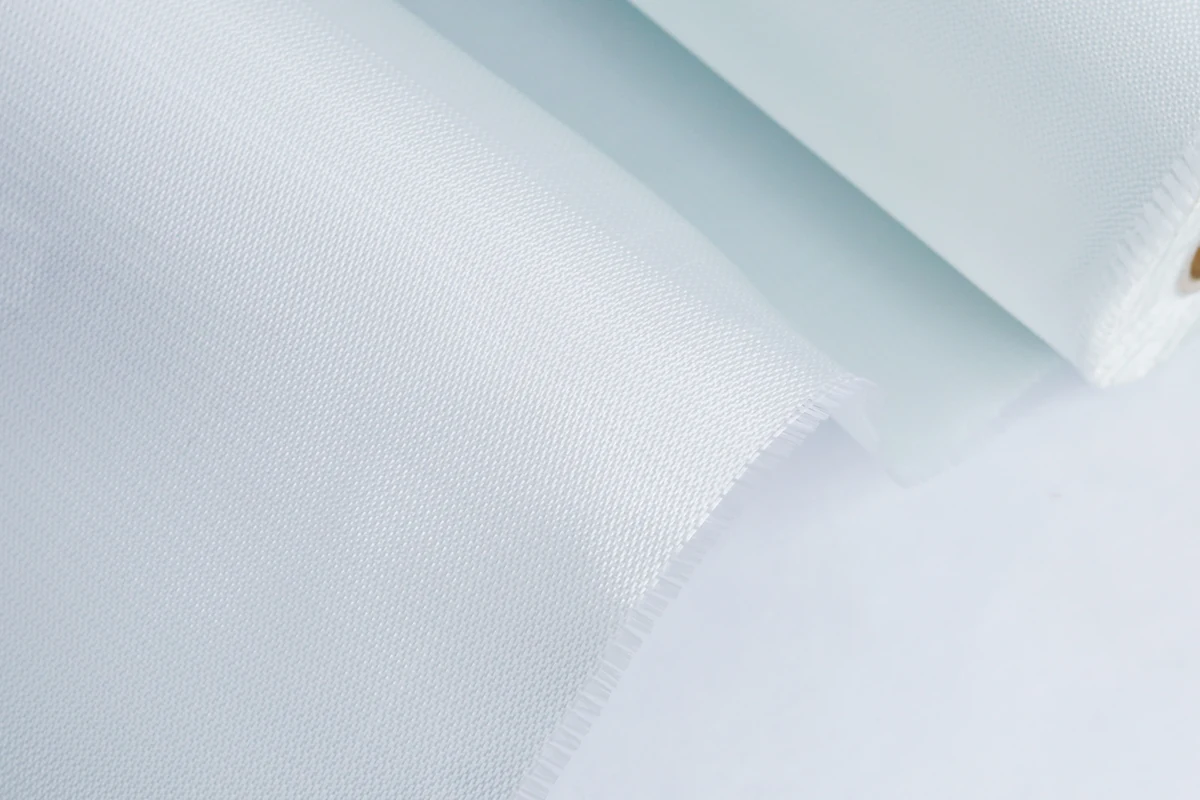

Woven E-glass fiberglass fabric

E-Glass Fabric

Base fabrics 2116, 3732 and 7628 rated to 550C. Standalone rolls or substrate for your own coating line.

3732 E-Glass FabricTwill · Heat-treated
3732Flagship

E-glass twill-weave fabric, heat-treated

430 g/m²·550°C
2116 E-Glass FabricLight plain weave
2116

Light plain weave for thinner composite builds.

105 g/m²·550°C
7628 E-Glass FabricElectronic-grade plain
7628

Standard electronic-grade plain weave, 200 g/m².

200 g/m²·550°C
EW100 E-Glass FabricUltra-fine plain weave
EW100

Ultra-fine and high-strength: for thin high-performance builds.

105 g/m²
Fiberglass backed industrial tapes

Industrial Tapes

Fiberglass-backed foil tapes and adhesive-free insulation tapes, -40C to 550C service.

ZA6130Y Industrial TapesFR · Solvent acrylic
ZA6130YFlagship

7μm aluminum foil + 110g fiberglass cloth + 45g FR solvent acrylic adhesive

285 g/m²·260°C
ZA6110Y Industrial TapesSolvent · Strongest bond
ZA6110Y

Solvent acrylic, highest general bond strength.

240 g/m²·260°C
ZA6110S Industrial TapesWater-based · Low VOC
ZA6110S

Water-based acrylic, low VOC for sensitive environments.

240 g/m²·260°C
ZA6140Y Industrial TapesFR · Lightweight
ZA6140Y

Fire-rated, lighter weight option for the same safety requirement.

240 g/m²·260°C

Special Variants

Modified structures engineered for specific requirements — different from the standard models above

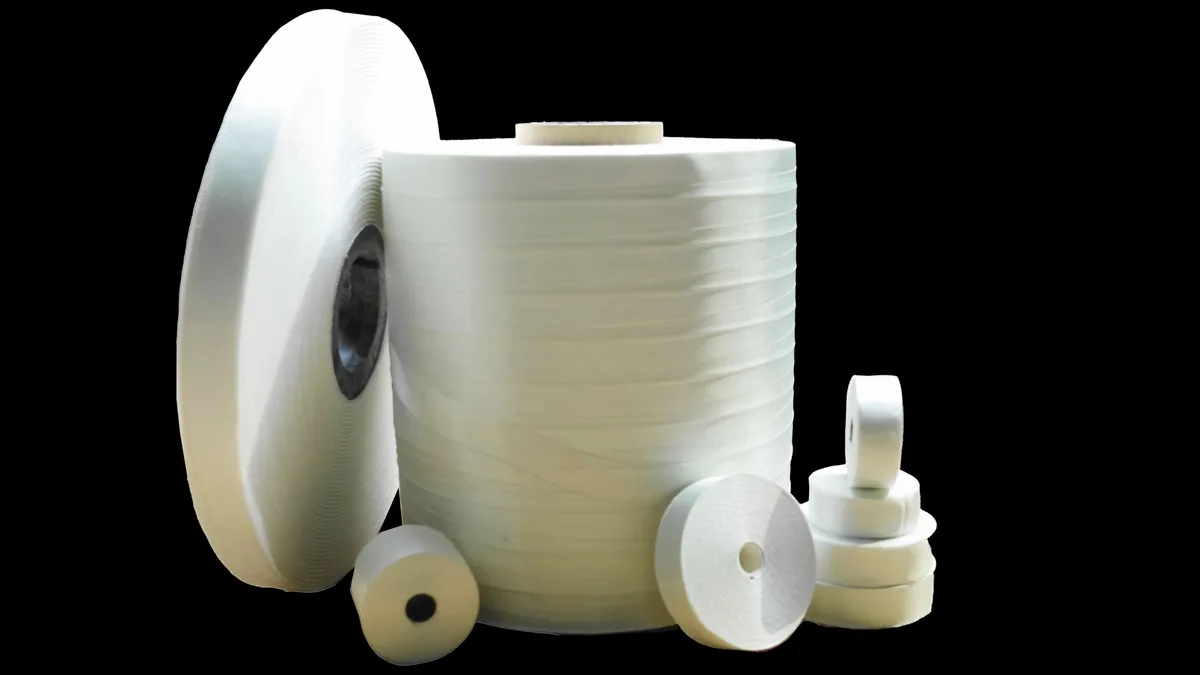

FG13 Industrial Tapes550°C · A1 non-combustible
FG13FlagshipAdhesive-Free

Woven alkali-free E-glass tape, no adhesive

160 g/m²·550°C

Need a Specification Not Listed?

These are standard production models. Custom weight, width, foil thickness and coatings are all produced in-house on our own lines.

Request Custom Specification
