Model A6230Breathable · Anti-Condensation
A6230 Perforated Foil Fabric
6μm aluminum foil + adhesive + 210g pre-punched glass cloth
Flagship ModelA6230 Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 230 g/m² |
| Thickness | 0.22 mm |
| Open Area | 1–5% customizable |
| Reflectivity | Up to 90% |
| Temperature | -40°C to +260°C |
| Width / Length | 1.0–1.5 m / 50–2,000 m |
Request a Quote
Fill in your details and we'll respond within 24 hours.
Prefer WhatsApp?Chat on WhatsApp
Request a Quote
Fill in your details and we'll respond within 24 hours.
Prefer WhatsApp?Chat on WhatsApp
Product Line
Perforated Foil Fabric

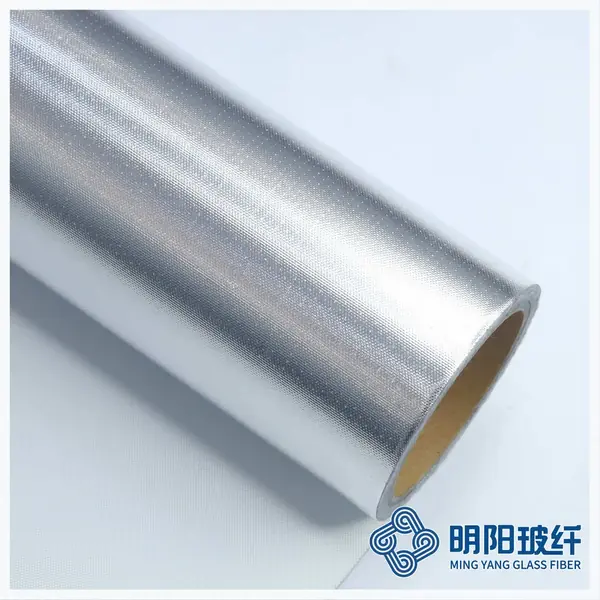

Perforated aluminum foil fiberglass fabric (Model A6230) is a composite material featuring a 210g E-glass fiber base laminated with 6μm aluminum foil, with pre-punched holes. It serves two distinct purposes depending on the application: **As a breathable vapor-permeable facing:** The micro-perforations allow moisture vapor to escape, preventing condensation in wall systems, roofing membranes, and HVAC duct insulation.
View Perforated Foil Fabric Product Page
